Our SPM

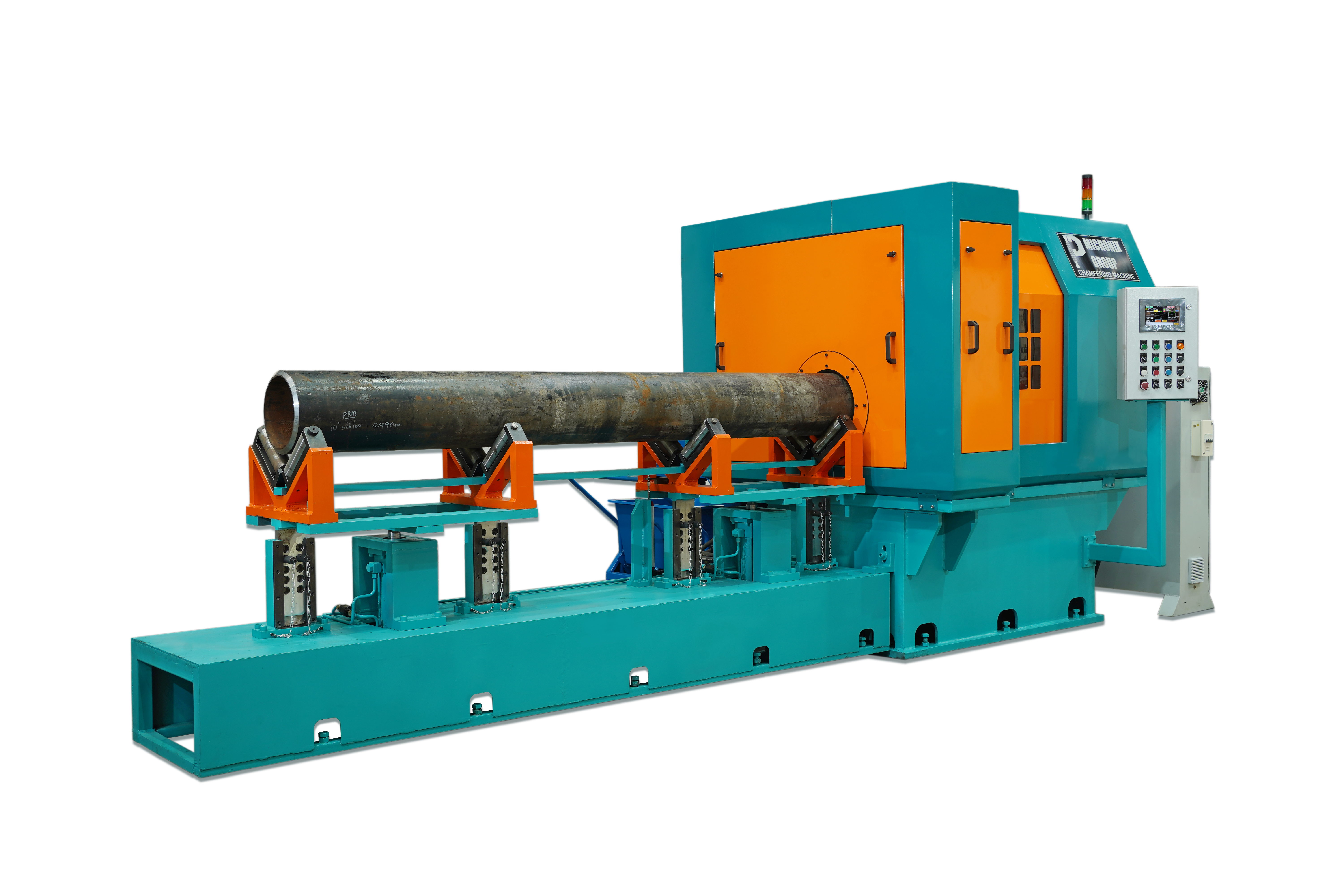

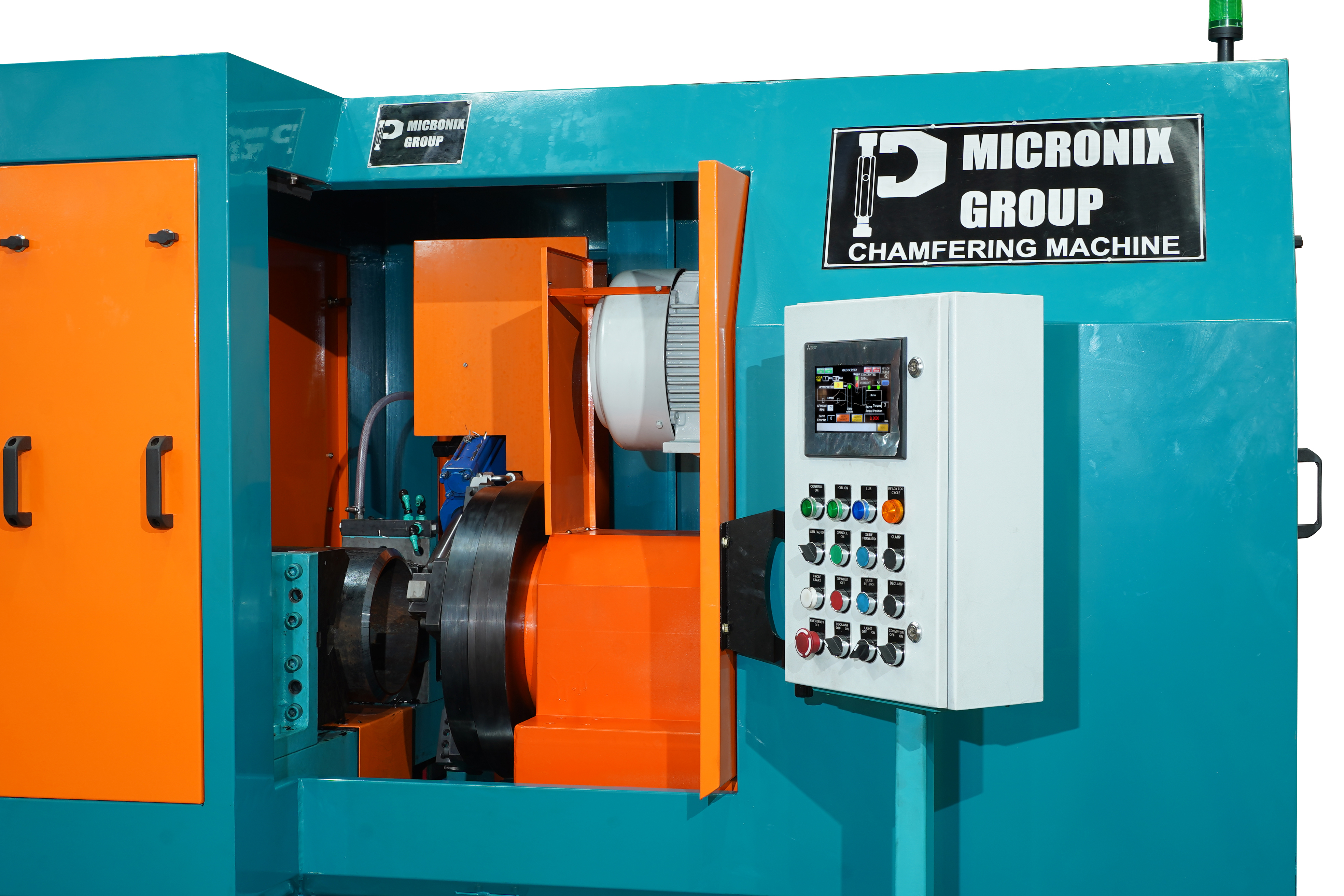

The Pipe Chamfering Machine is a fully designed-to-manufactured solution by Micronix, engineered for variable pipe sizes ranging from small diameters to heavy industrial pipes. Built for flexibility and precision, this machine is capable of performing four types of chamfering operations as per customer requirements
— ensuring consistent geometry, repeatability, and defect-free edges. Developed for multinational manufacturing setups, the machine features:
• Heavy-duty structure for vibration-free performance and extended tool life
• Precision clamping & hydraulic supports to handle pipes of different sizes with ease
• Automated control system with intuitive operator interface for safe and reliable operations
• Superior surface finish and accuracy meeting global automotive and engineering standards

With its class-leading productivity, customizable chamfering cycles, and robust design, this machine significantly improves production efficiency and process reliability. It is trusted by MNCs across sectors, setting a benchmark for next-generation pipe processing solutions.

This Special Purpose Machine is designed exclusively for performing angular drilling operations on crankcases, a critical component in the automobile sector. The crankcase requires high-precision drilling at defined angular positions to ensure accurate oil passages and assembly points. Conventional machines are often inadequate for maintaining the required accuracy and consistency at such complex angles. The Angular Drilling SPM addresses this challenge by combining rigid fixture design, precise spindle orientation, and dedicated tooling, ensuring accuracy within ±0.030 mm. The machine is fully capable of handling critical operations that directly influence the performance and durability of the engine. By automating angular drilling on a dedicated platform, this SPM not only improves accuracy and repeatability but also enhances productivity in mass production of crankcases. It ensures minimal rejection, reduced cycle time, and dependable machining quality, making it a vital solution for manufacturing one of the most critical components in the automotive industry.

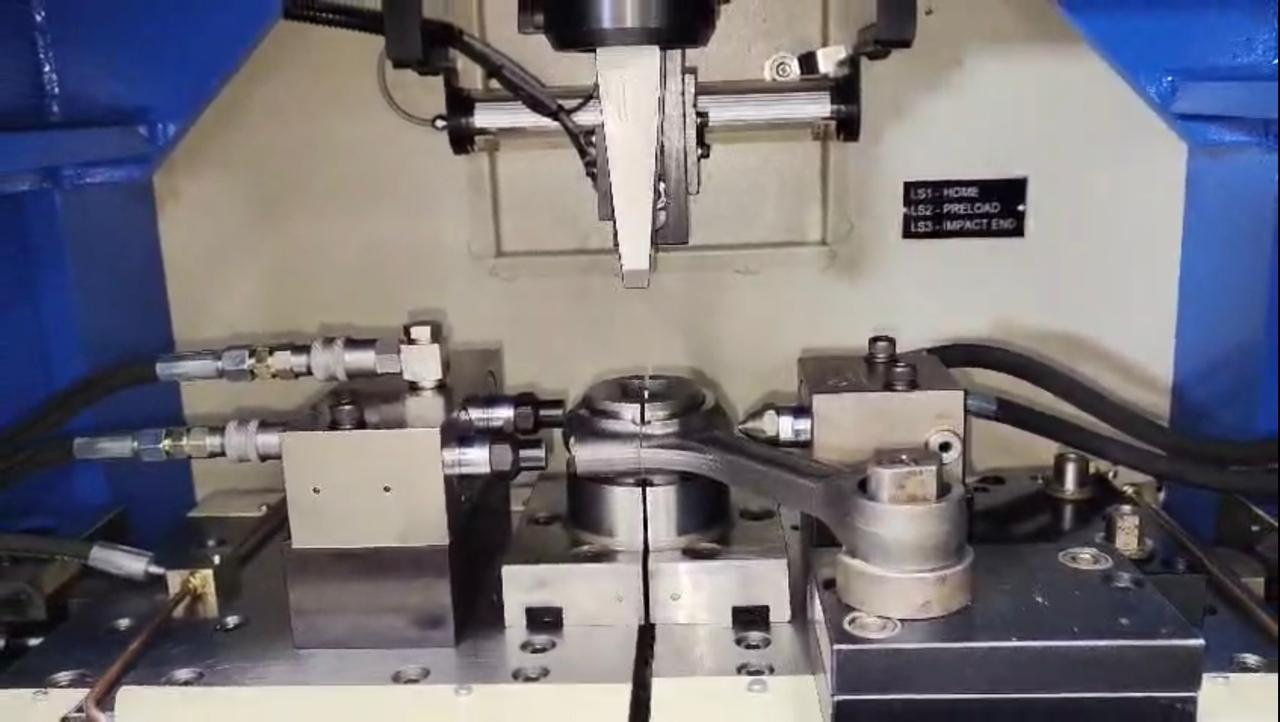

Fracturing Split SPM The Fracturing Split SPM is a specially engineered machine designed and manufactured by MICRONIX to achieve precision fracturing and splitting of a bore with extreme accuracy. This Special Purpose Machine is developed for critical automotive and engineering applications where split-joint components are required to maintain high rigidity and alignment.
• Process Capability:
The machine performs controlled fracturing of a single bore and ensures a splitting accuracy within ±0.020 mm, eliminating the need for additional finishing operations.
• Design & Engineering:
o Built under MICRONIX’s Design-to-Manufacture methodology, ensuring complete integration of mechanical design, tool engineering, and process validation.
o Incorporates rigid fixturing systems and high-strength clamping arrangements to maintain part stability during the fracturing process.
o Uses advanced actuation systems (hydraulic / servo-electric, depending on application) to apply a precise and repeatable fracturing load.
o Equipped with linear guideways and precision locators to guarantee exact positioning of the workpiece before splitting.
• Performance & Accuracy:
Bore fracturing and splitting repeatability: ±20 microns (0.020 mm).
o Capable of handling medium to high-volume production with consistent quality.
o Eliminates the distortion commonly associated with conventional machining or cutting operations.
• Applications:
o Widely used in automobile engine components, such as connecting rods and bearing caps, where fractured surfaces provide a natural fit for reassembly.
o Suitable for other precision split-bore applications in industrial and engineering sectors requiring high clamping and assembly accuracy.
• Advantages:
o Enhanced dimensional stability of split components.
